overview
Informação básica.
Modelo Nº. | A3463502939 | Qualidade | Alta qualidade;Original OEM |
Tamanho | Tamanho Padrão OEM | Nome da peça | Engrenagem cônica North Benz Beiben |
MOQ | 1 PCS | Automático | Automático |
Amostra | Disponível | Mercado principal | Mundialmente |
eixo | Peças de eixo North Benz Beiben | Condition | Novo |
Certificação | ISO 9001 | Pacote de transporte | Pacote padrão |
Especificação | Componente padrão | Origem | China |
Número de dentes da coroa | 28 dentes | Número de dentes chanfrados | 17 dentes |
Número de dentes angulares | 46 dentes | Taxa de velocidade de montagem do eixo correspondente | I=5,73 |
Product Description

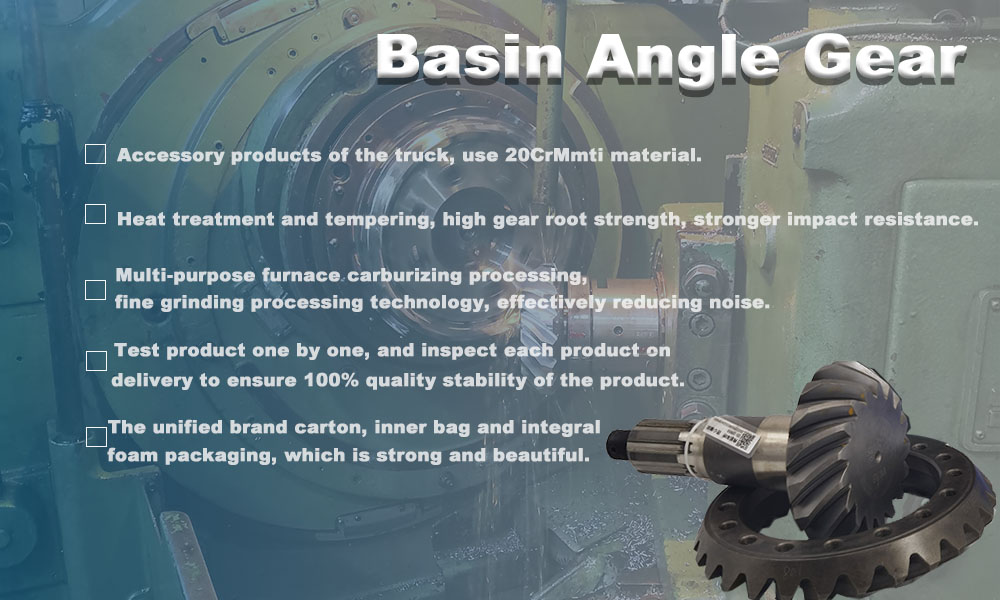

28/21 Bevel Gear For North Benz Beiben Truck Spare Parts A3463502939
Working principle of Bevel Gear
Single reduction gear is a driving bevel gear (commonly known as angular gear) and a basin angle gear pair. The driving bevel gear is connected with the transmission shaft, rotates clockwise, sticks to its right side from the bevel gear, and rotates downward at the meshing point, which is consistent with the forward direction of the wheel. Due to the small diameter of the driving bevel gear and the large diameter of the bevel gear, the function of deceleration is achieved.
The double reduction has an additional intermediate transition gear.The left side of the driving bevel gear is meshed with the bevel gear of the intermediate gear. The bevel gear is coaxial with a spur gear with small diameter, and the spur gear is meshed with the driven gear. In this way, the intermediate gear rotates backward and the driven gear rotates forward. There is a two-stage deceleration process in the middle.
Due to the increase of axle volume, double reduction was mainly used in vehicles with low engine power in the past, mainly in construction machinery with low speed and high torque.
In the double reduction final drive, if the second-stage deceleration is carried out near the wheel, it actually constitutes an independent part at the two wheels, it is called wheel reducer. The advantage of this is that the torque transmitted by the half shaft can be reduced, which is conducive to reducing the size and quality of the half shaft. The wheel reducer can be planetary gear type or composed of a pair of cylindrical gear pairs. When the cylindrical gear pair is used for wheel side deceleration, the up-down position relationship between the wheel axis and the half shaft can be changed by adjusting the mutual position of the two gears. This kind of axle is called portal axle, which is often used for vehicles with special requirements for the high and low position of the axle.
According to the number of the main reducer transmission ratio, it can be divided into single-speed and double-speed.
Domestic cars basically adopt single speed main reducer with fixed transmission ratio. On the double reduction final drive, there are two transmission ratios for selection, and this main reducer actually acts as an auxiliary transmission.
Company advantages
Main certification of bevel gear pair
(1) Passed ISO/TS16949:2009 quality management system certification.
(2) Passed ISO/IEC17025:2005 certification.
(3) Certified by National Laboratory Accreditation Committee.
(4) "100 Auto Parts Suppliers" in China.
(5) China Machinery Top 500.
(6) National first-class measurement enterprise.
(7) National first-class physical and chemical enterprise.
FAQ
Q1.Quais são os seus termos de embalagem?
Temos embalagens de marca e embalagens neutras, e também podemos fazer o que você quiser mediante autorização.Isso é flexível.
Q2.Qual é a sua política de amostra?
Podemos fornecer a amostra se tivermos peças prontas em estoque, mas os clientes devem pagar o custo da amostra e o custo do correio.
Q3.Quais são as condições e vantagens da agência da sua marca?
Depois de assinar um agente em uma cidade, não vamos assinar uma segunda empresa para proteger a vantagem da marca do agente e vantagem de preço.E ajudaremos o agente a desenvolver clientes e resolver todos os tipos de problemas difíceis e diversos sobre produtos.
Q4.Como garantir o seu serviço pós-venda?
Inspeção rigorosa durante a produção, verifique rigorosamente os produtos antes do envio para garantir que nossa embalagem esteja em boas condições.Acompanhe e receba feedback do cliente regularmente.A garantia de nossos produtos é de 365 dias.
Cada produto fornece serviço de garantia de qualidade.Se houver algum problema com o produto dentro do período de garantia, o cliente poderá negociar conosco detalhadamente as reclamações relacionadas e faremos o possível para satisfazê-lo.
Q5.Como você torna nosso relacionamento comercial de longo prazo e bom?
Mantemos boa qualidade e preço competitivo para garantir que nossos clientes se beneficiem;
Respeitamos cada cliente como nosso amigo e sinceramente fazemos negócios e fazemos amizade com eles, não importa quem sejam.
Q6.Quais são as suas condições de pagamento?
Por TT ou LC.Mostraremos as fotos dos produtos e pacotes antes de pagar o saldo.
T/T 30% como depósito e 70% antes da entrega.Mostraremos as fotos dos produtos e pacotes antes de pagar o saldo.
